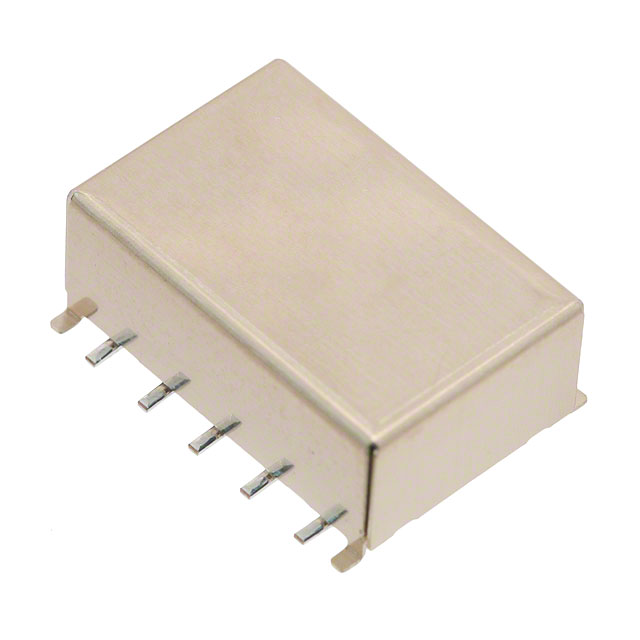

| Part number: | ARA200A48Z |
| Description: | RELAY RF DPDT 1A 48V |
| Manufacturer | Panasonic Electric Works |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electric Works" |
| Mounting Type | Surface Mount |
| Coil Voltage | 48VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Coil Current | 6.3 mA |
| Coil Type | Non Latching |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 30VDC - Max |
| Must Release Voltage | 4.8 VDC |
| Must Operate Voltage | 36 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Coil Power | 300mW |
| Coil Resistance | 7.68 kOhms |
|
