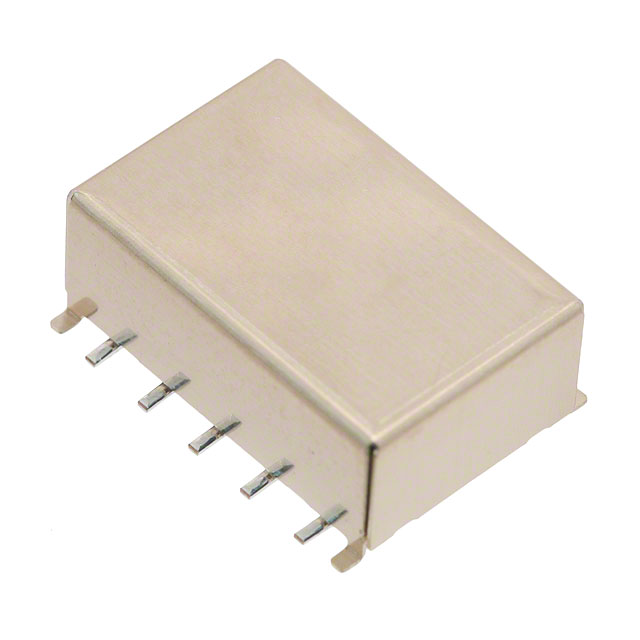

| Part number: | ARA220A4HX |
| Description: | RELAY RF DPDT 1A 4.5V |
| Manufacturer | Panasonic Electric Works |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electric Works" |
| Mounting Type | Surface Mount |
| Coil Voltage | 4.5VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Coil Current | 31 mA |
| Coil Type | Latching, Dual Coil |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 30VDC - Max |
| Must Operate Voltage | 3.38 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Coil Power | 140mW |
| Coil Resistance | 145 Ohms |
|
