| Part number: | 2010/60 100SF |

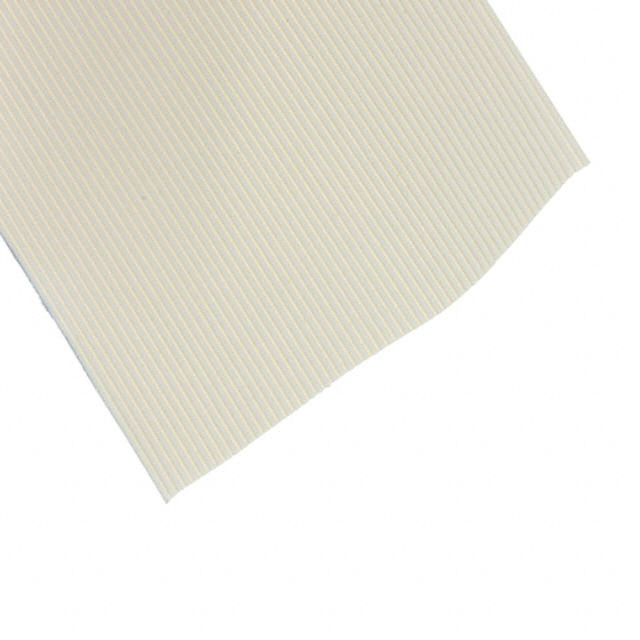

| Description: | CBL RIBN 60COND 0.05 WHITE 5' |
| Manufacturer | 3M |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Splice Free, Zippable |
| Length | 5.0' (1.52m) |
| Wire Gauge | 28 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Polyolefin (PO) |
| Conductor Strand | 7 Strands / 36 AWG |
| Pitch | 0.050" (1.27mm) |
| Operating Temperature | -20°C ~ 105°C |
| Number of Conductors | 60 |
| Cable Type | Flat Cable |
| Ratings | UL Style 20930 |
| Conductor Material | Copper, Tinned |
| Jacket Color | White |
| Insulation Resistance | 10GOhm |
| Ribbon Thickness | 0.035" (0.89mm) |
| Ribbon Width | 3.000" (76.20mm) |
| First Conductor Mark | Blue |
| Voltage | 30 V |
|
