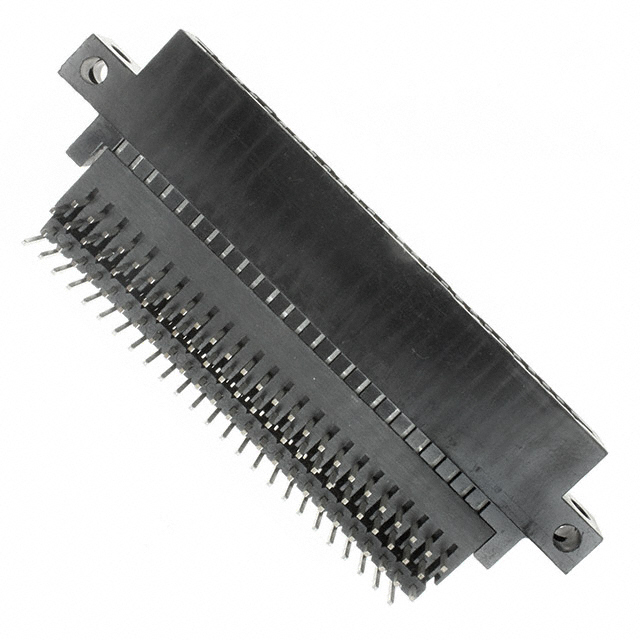

| Part number: | ACB50DKBS |
| Description: | CONN EDGE DUAL FML 100POS 0.100 |
| Manufacturer | Sullins Connector Solutions |
| Encapsulation | Tray |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sullins Connector Solutions" |
| Features | Bi-Level - High Density |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 100 |
| Pitch | 0.100" (2.54mm) |
| Operating Temperature | -65°C ~ 150°C |
| Read Out | Dual |
| Contact Type | Cantilever |
| Card Type | Non Specified - Dual Edge, Bi-Level |
| Card Thickness | 0.062" (1.57mm) |
| Flange Feature | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Contact Material | Beryllium Copper |
| Number of Positions/Bay/Row | 50 |
| Number of Rows | 2 |
|
