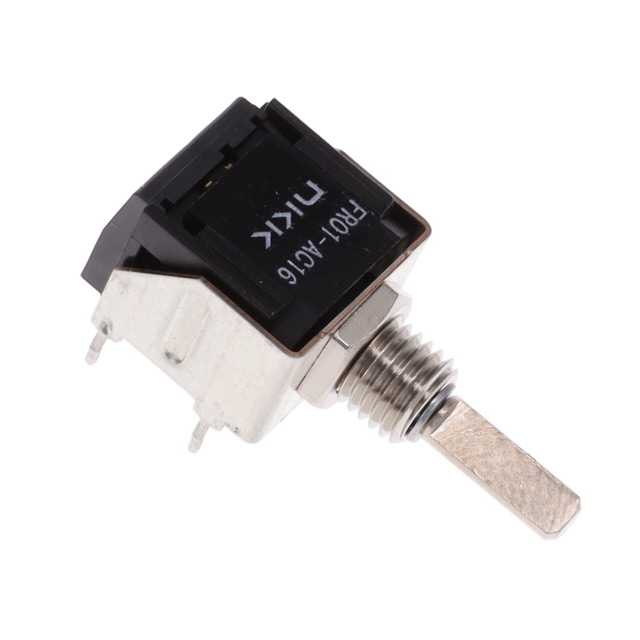

| Part number: | FR01AC16HB-S |
| Description: | SW ROTARY DIP HEX COMP 0.1A 5V |
| Manufacturer | NKK Switches |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NKK Switches" |
| Contact Finish | Gold |
| Voltage Rating | 5VDC |
| Current Rating (Amps) | 100mA |
| Mounting Type | Panel Mount, Right Angle |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | Hexadecimal Complement |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Actuator Type | Rotary with Shaft |
| Height Above Board | 0.433" (11.00mm) |
| Actuator Level | Raised |
| Washable | No |
| Contact Material | Copper Alloy |
| Number of Positions | 16 |
|
