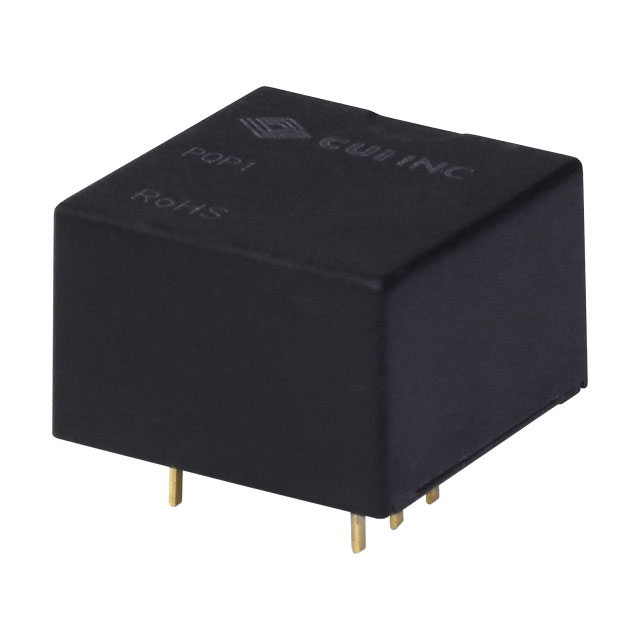

| Part number: | PQP1-D12-D9-D |
| Description: | DC DC CONVERTER +/-9V 1W |
| Manufacturer | CUI Inc |
| Encapsulation | Tube |
| Quantity | 35 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CUI Inc" |
| Package / Case | 8-DIP Module, 5 Leads |
| Size / Dimension | 0.55" L x 0.55" W x 0.35" H (14.0mm x 14.0mm x 9.0mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 18V |
| Approval Agency | CE, cURus |
| Efficiency | 80% |
| Current - Output (Max) | 56mA, 56mA |
| Voltage - Input (Min) | 9V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Power (Watts) | 1 W |
| Number of Outputs | 2 |
| Voltage - Isolation | 1.5 kV |
|
