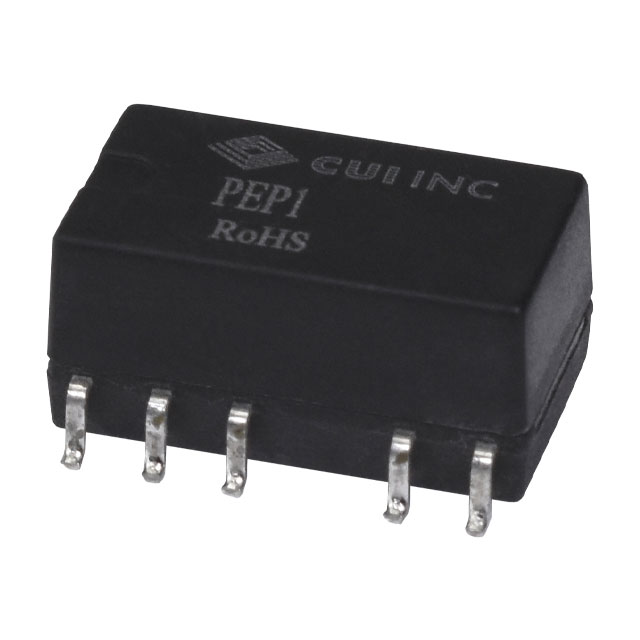

| Part number: | PEP1-S5-D5-M |
| Description: | DC DC CONVERTER +/-5V 1W |
| Manufacturer | CUI Inc |
| Encapsulation | Tube |
| Quantity | 32 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CUI Inc" |
| Package / Case | 12-SMD Module, 10 Leads |
| Size / Dimension | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) |
| Mounting Type | Surface Mount |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Efficiency | 82% |
| Current - Output (Max) | 100mA, 100mA |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Power (Watts) | 1 W |
| Number of Outputs | 2 |
| Voltage - Isolation | 3 kV |
| Standard Number | 55024; 55032 Class A; 62368-1 |
|
