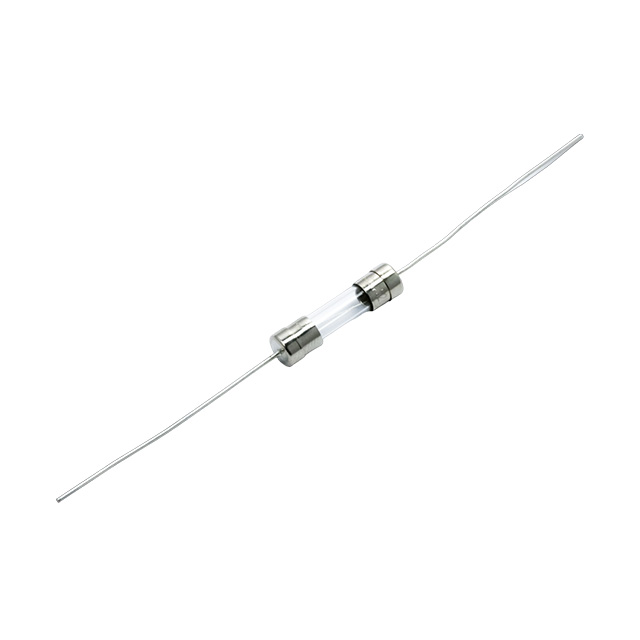

| Part number: | FSC-P-3.5A |
| Description: | FUSE GLASS 3.5A 250VAC 5X20MM |
| Manufacturer | OptiFuse |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "OptiFuse" |
| Package / Case | 5mm x 20mm (Axial) |
| Size / Dimension | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 90°C |
| Response Time | Fast Blow |
| Approval Agency | cULus, UL 248 |
| DC Cold Resistance | 13.52 Ohms |
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating (Amps) | 3.5 A |
| Voltage Rating - AC | 250 V |
|
