| Part number: | 0472001.MAT1L |

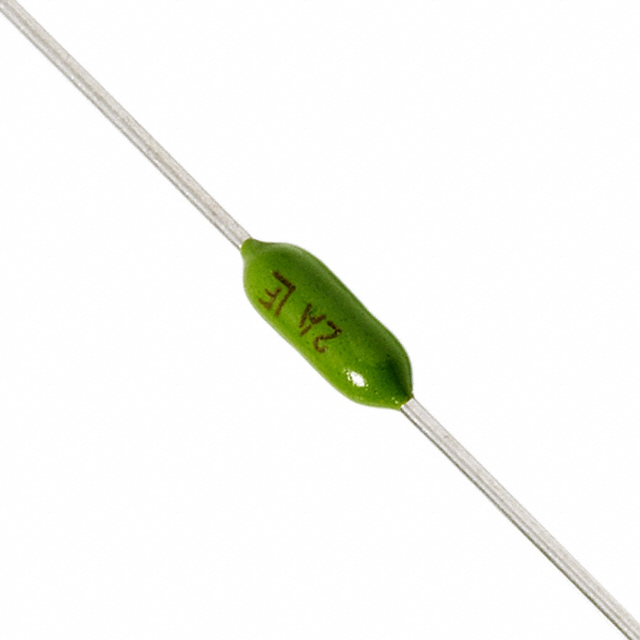

| Description: | FUSE BRD MNT 1A 125VAC/VDC AXIAL |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Box (TB) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | Axial |
| Size / Dimension | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Slow Blow |
| Approval Agency | UR |
| DC Cold Resistance | 0.078 Ohms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 1 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 0.9384 |
|
