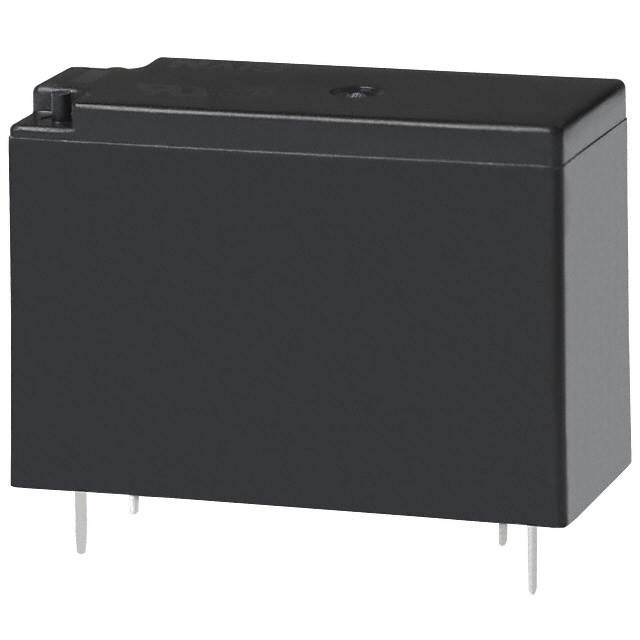

| Part number: | JW1ASN-DC5V-F |
| Description: | RELAY GEN PURPOSE SPST 5A 5V |
| Manufacturer | Panasonic Electric Works |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electric Works" |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Operating Temperature | -40°C ~ 60°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 106 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Must Release Voltage | 0.5 VDC |
| Must Operate Voltage | 3.5 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Coil Resistance | 47 Ohms |
| Coil Insulation | Class E |
| Load - Max Switching | 1250VA, 150W |
|
