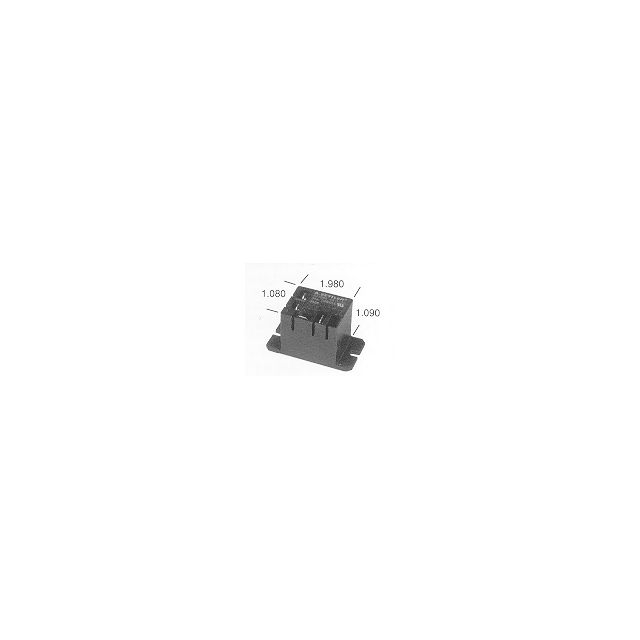

| Part number: | AZ2280-1A-24DEF |
| Description: | RELAY GEN PURPOSE SPST 40A 24V |
| Manufacturer | American Zettler |
| Encapsulation | Tray |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Zettler" |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Operating Temperature | -55°C ~ 85°C |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Approval Agency | CUR, UL, VDE |
| Relay Type | General Purpose |
| Coil Current | 36 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 277VAC, 28VDC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Coil Resistance | 660 Ohms |
| Coil Insulation | Class F |
| Load - Max Switching | 11080VA, 840W |
|
