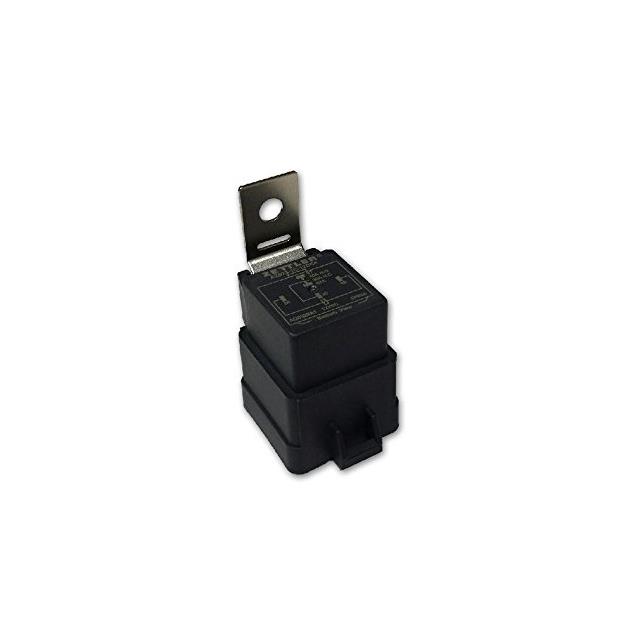

| Part number: | AZ9731-1A-12DC4R1 |
| Description: | RELAY AUTOMOTIVE SPST 40A 12V |
| Manufacturer | American Zettler |
| Encapsulation | Tray |
| Quantity | 16 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Zettler" |
| Features | Resistor, MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Coil Current | 133.3 mA |
| Coil Type | Non Latching |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 75VDC - Max |
| Must Release Voltage | 1.8 VDC |
| Must Operate Voltage | 7.8 VDC |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Coil Power | 1.6W |
| Coil Resistance | 90 Ohms |
|
