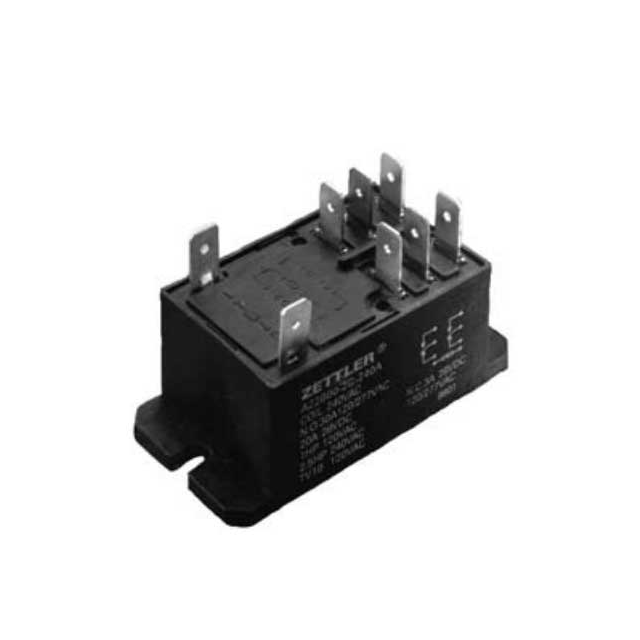

AZ2800-2C-24AE
Part number: AZ2800-2C-24AE
Description: RELAY EV CHG SOLAR DPDT 40A 24V
Manufacturer American Zettler
Encapsulation Tray
Quantity 20
RoHS 1
TYPEDESCRIPTION
Mfr"American Zettler"
Mounting Type Chassis Mount
Coil Voltage 24VAC
Operating Temperature -40°C ~ 65°C
Termination Style Quick Connect - 0.187"/0.250"
Approval Agency CUR, UL, VDE
Relay Type General Purpose
Coil Current 166 mA
Coil Type Non Latching
Seal Rating Sealed - Fully
Contact Material Silver Cadmium Oxide (AgCdO)
Contact Form DPDT (2 Form C)
Contact Rating (Current) 40 A
Switching Voltage 600VAC, 30VDC - Max
Must Release Voltage 4.8 VAC
Must Operate Voltage 19.2 VAC
Operate Time 25 ms
Release Time 25 ms
Coil Resistance 45 Ohms
Coil Insulation Class F
Load - Max Switching 11080VA, 1200W
