| Part number: | 045903.5UR |

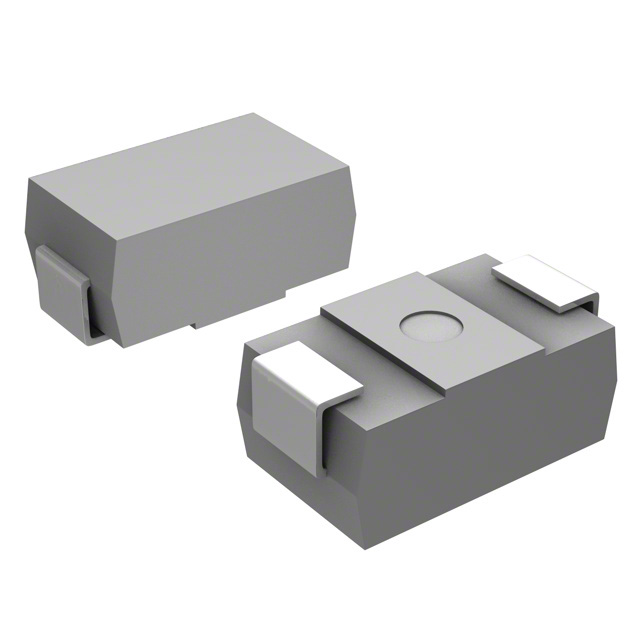

| Description: | FUSE BRD MNT 3.5A 125VAC/VDC SMD |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | CSA, UL |
| DC Cold Resistance | 0.024 Ohms |
| Breaking Capacity @ Rated Voltage | 50A AC, 300A DC |
| Current Rating (Amps) | 3.5 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 1.65 |
|
