| Part number: | 74LV00D,118 |
| Description: | IC GATE NAND 4CH 2-INP 14SO |
| Manufacturer | Nexperia |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nexperia" |

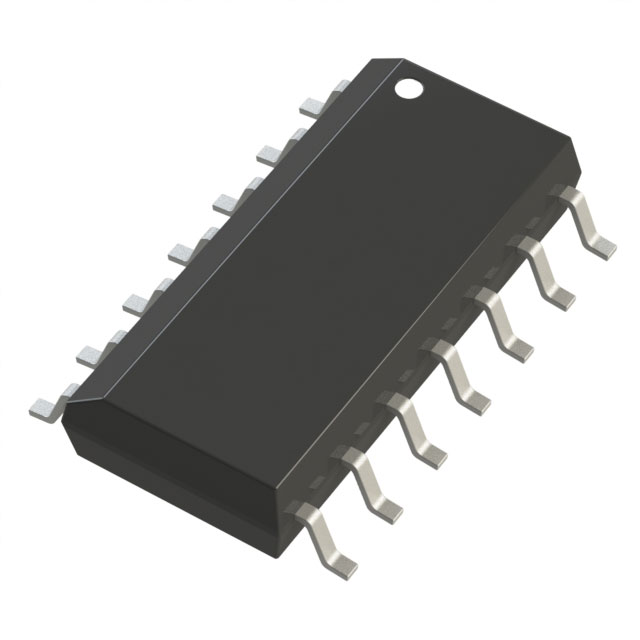

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1V ~ 5.5V |
| Current - Output High, Low | 12mA, 12mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-SO |
| Input Logic Level - High | 0.9V ~ 2V |
| Input Logic Level - Low | 0.3V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 40 µA |
|
