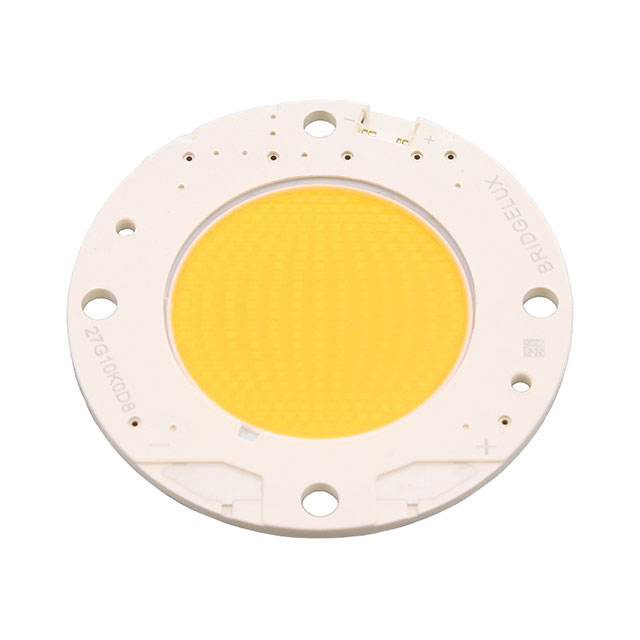

| Part number: | BXRC-27G10K0-D-83 |
| Description: | LED COB VERO 29C WM WH RND 2700K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Features | With Connector |
| Color | White, Warm |
| Size / Dimension | 49.20mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 36.4V |
| Height | 1.90mm |
| Current - Test | 1.7A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 5.5A |
| Lumens/Watt @ Current - Test | 144 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 29.10mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 8886lm (Typ) |
|
