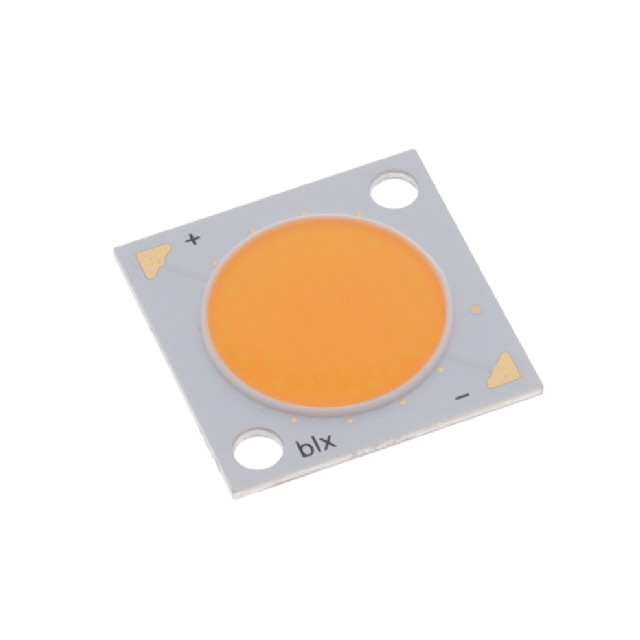

| Part number: | BXRE-30G6500-D-83 |
| Description: | LED COB V SER GEN 8 WH SQ 3000K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tube |
| Quantity | 15 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Color | White, Warm |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 33.5V |
| Current - Test | 1.05A |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test | 147 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 22.00mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 5201lm (Typ) |
|
