| Part number: | SMC201LR G/W |

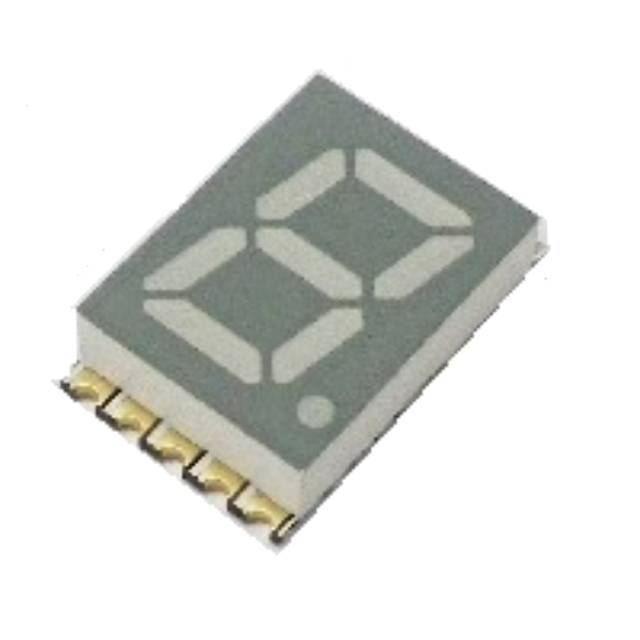

| Description: | 0.2" SGL SMD DISPLAY - S-RED |
| Manufacturer | American Opto Plus LED Corp. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Opto Plus LED Corp." |
| Package / Case | 10-SMD, No Lead |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.315" H x 0.283" W x 0.128" D (8.00mm x 7.20mm x 3.25mm) |
| Number of Characters | 1 |
| Millicandela Rating | 2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.20" (5.08mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 75mW |
|
