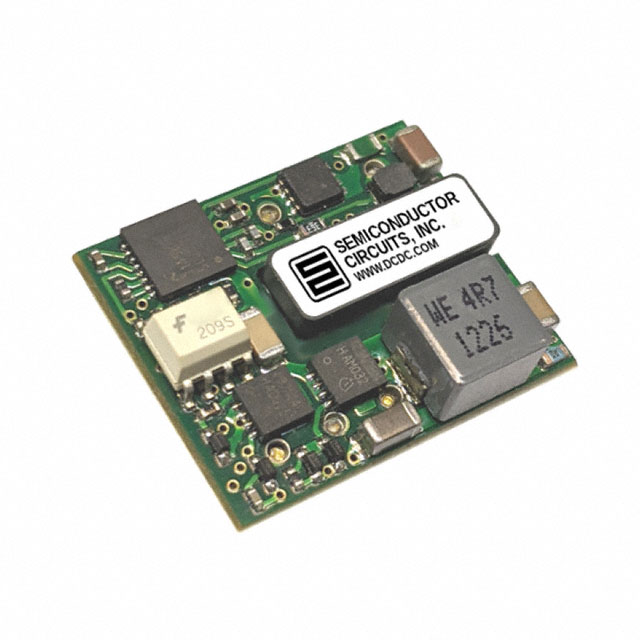

| Part number: | CPZ4A36NS |
| Description: | DC DC CONVERTER 5V 20W |
| Manufacturer | Semiconductor Circuits, Inc. |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Semiconductor Circuits, Inc." |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Package / Case | Thirty-Second Brick |
| Size / Dimension | 0.94" L x 0.78" W x 0.35" H (23.9mm x 19.8mm x 8.9mm) |
| Mounting Type | Surface Mount |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 72V |
| Approval Agency | TUV |
| Efficiency | 87% |
| Current - Output (Max) | 4A |
| Supplier Device Package | Thirty-Second Brick |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 5V |
| Control Features | Enable, Active Low |
| Power (Watts) | 20 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.5 kV |
|
