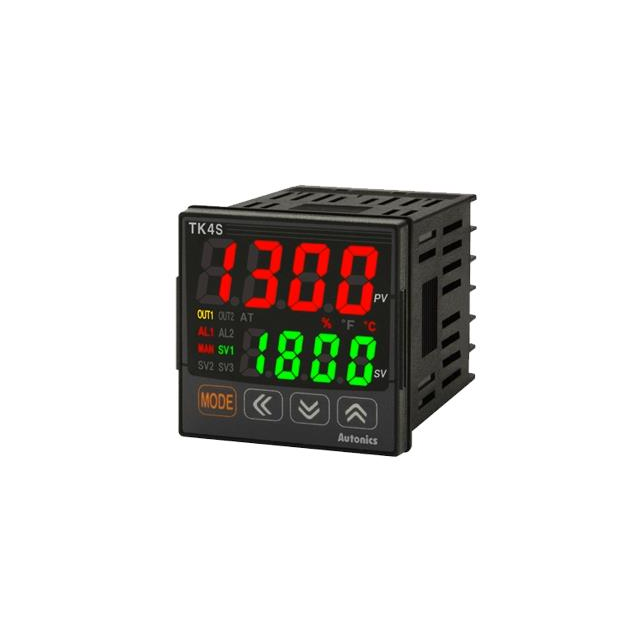

| Part number: | TK4S-R4RR |
| Description: | TEMP CONTROL 2RELAY 100-240VAC |
| Manufacturer | Autonics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Autonics" |
| Features | Option Cards Available |
| Display Type | LED - Green, Red Characters |
| Output Type | Relay (2) |
| Mounting Type | Panel Mount |
| Type | Temperature Controller (RTD, Type B, C, E, G, J, K, L, N, PL-II, R, S, T, U) |
| Termination Style | Screw Terminal |
| Voltage - Supply | 100 ~ 240VAC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Input Range | -200°C ~ 2300°C, -328°F ~ 4172°F |
| Display Characters - Height | 0.551" (14.00mm), 0.394" (10.00mm) |
| Communications | Option Cards Available |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4 |
|
