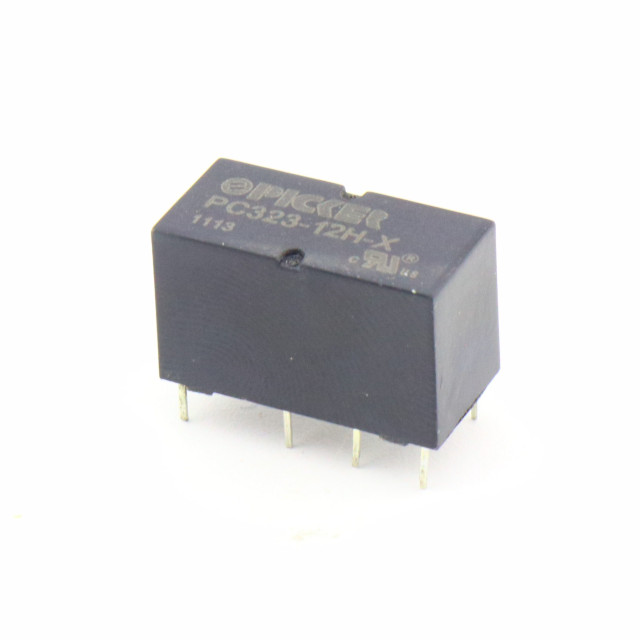

| Part number: | PC323-12H-X |
| Description: | RELAY TELECOM DPDT 2A 12V |
| Manufacturer | Picker Components |
| Encapsulation | Tube |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Picker Components" |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | cURus |
| Relay Type | Telecom |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 250VAC, 48VDC - Max |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 9 VDC |
| Operate Time | 4.5 ms |
| Release Time | 1.5 ms |
| Coil Resistance | 720 Ohms |
| Coil Insulation | Class B |
| Load - Max Switching | 750VA, 144W |
|
