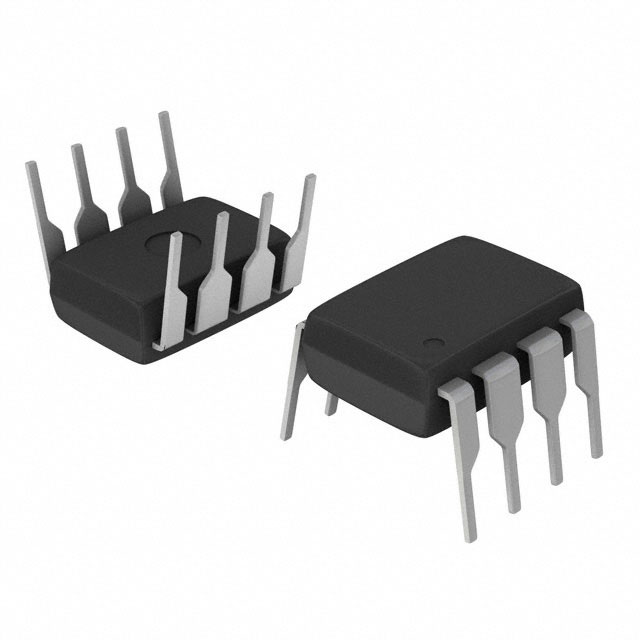

| Part number: | HCPL-9000 |
| Description: | DGTL ISO 2500VRMS 1CH GP 8DIP |
| Manufacturer | Broadcom |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Broadcom" |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Type | General Purpose |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 110MBd |
| Technology | GMR (Giant Magnetoresistive) |
| Voltage - Isolation | 2500Vrms |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 8-DIP |
| Rise / Fall Time (Typ) | 1ns, 1ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 15ns, 15ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 3ns |
| Number of Channels | 1 |
|
