| Part number: | HCPL-091J-000E |
| Description: | DGTL ISO 2500VRMS 4CH GP 16SOIC |
| Manufacturer | Broadcom |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Broadcom" |

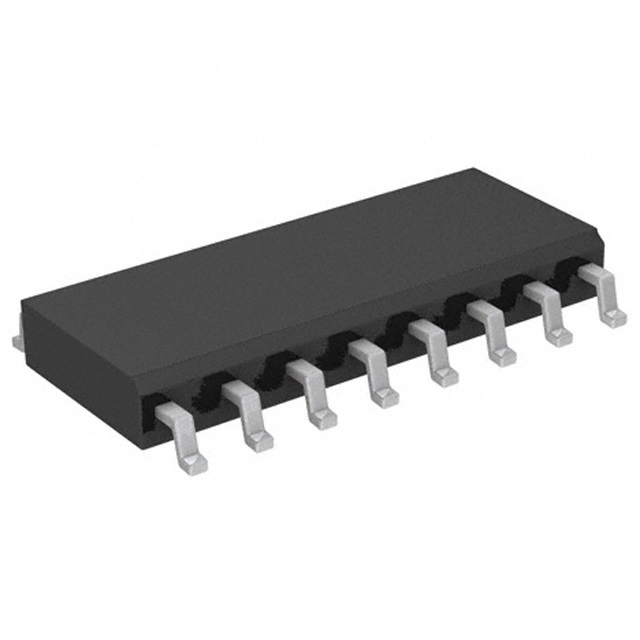

| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 110MBd |
| Technology | GMR (Giant Magnetoresistive) |
| Voltage - Isolation | 2500Vrms |
| Inputs - Side 1/Side 2 | 2/2 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 1ns, 1ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 15ns, 15ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 3ns |
| Number of Channels | 4 |
|
