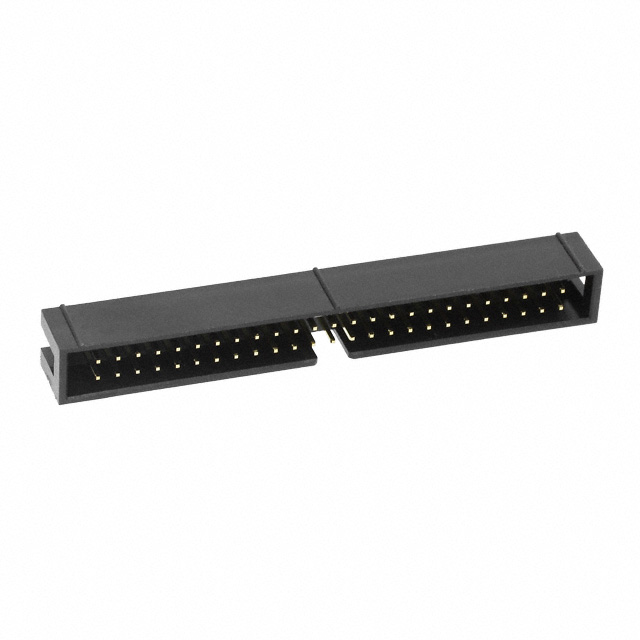

| Part number: | 30350-6002HB |
| Description: | CONN HEADER VERT 50POS 2.54MM |
| Manufacturer | 3M |
| Encapsulation | Tray |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Keying Slot |
| Connector Type | Header |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | Flash |
| Contact Shape | Square |
| Contact Length - Post | 0.110" (2.79mm) |
| Insulation Height | 0.366" (9.30mm) |
| Shrouding | Shrouded - 4 Wall |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Mating | 0.236" (6.00mm) |
|
