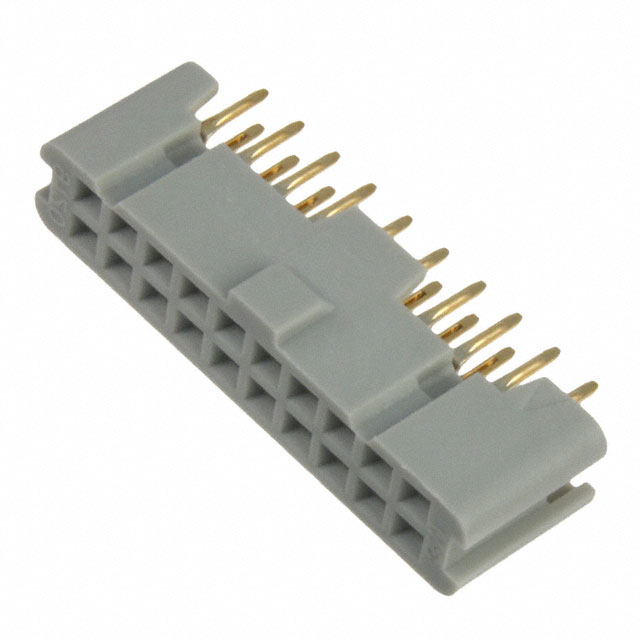

| Part number: | 9120-4500PL |
| Description: | CONN RCPT 20POS 0.1 GOLD PCB |
| Manufacturer | 3M |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Polarizing Key |
| Connector Type | Receptacle |
| Voltage Rating | 1000V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Kinked Pin, Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Gray |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | Flash |
| Contact Shape | Square |
| Contact Length - Post | 0.110" (2.79mm) |
| Insulation Height | 0.354" (9.00mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
|
