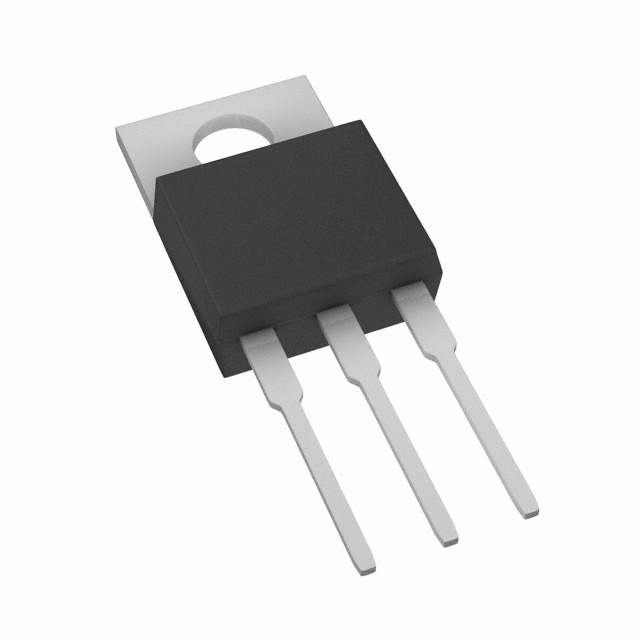

| Part number: | IRFBG20PBF-BE3 |
| Description: | MOSFET N-CH 1000V 1.4A TO220AB |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Tc) |
| Rds On (Max) @ Id, Vgs | 11Ohm @ 840mA, 10V |
| Power Dissipation (Max) | 54W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-220AB |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 1000 V |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 500 pF @ 25 V |
|
