| Part number: | SQ4937EY-T1_BE3 |
| Description: | MOSFET 2P-CH 30V 5A 8SOIC |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |

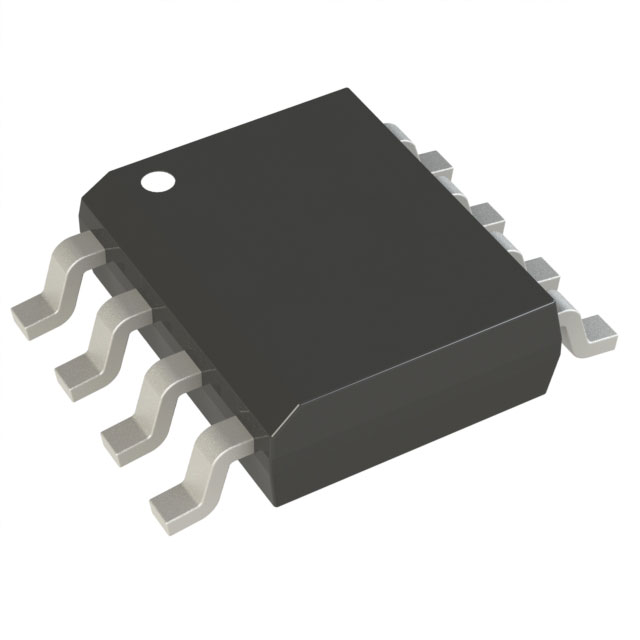

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3.3W (Tc) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 480pF @ 25V |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 3.9A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-SOIC |
| Grade | Automotive |
| Qualification | AEC-Q101 |
|
