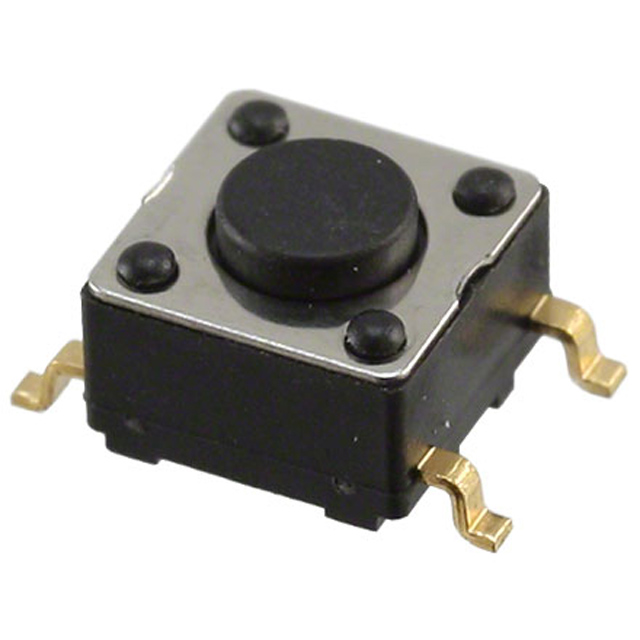

| Part number: | HP0315AFKP4-R |
| Description: | SWITCH TACTILE SPST-NO 0.4VA 28V |
| Manufacturer | NKK Switches |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NKK Switches" |
| Features | Sealed - Flux Protection |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -20°C ~ 70°C |
| Termination Style | Gull Wing |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.4VA @ 28VAC/DC |
| Actuator Type | Standard |
| Operating Force | 160gf |
| Outline | 6.20mm x 6.20mm |
| Actuator Height off PCB, Vertical | 4.40mm |
| Actuator Orientation | Top Actuated |
|
