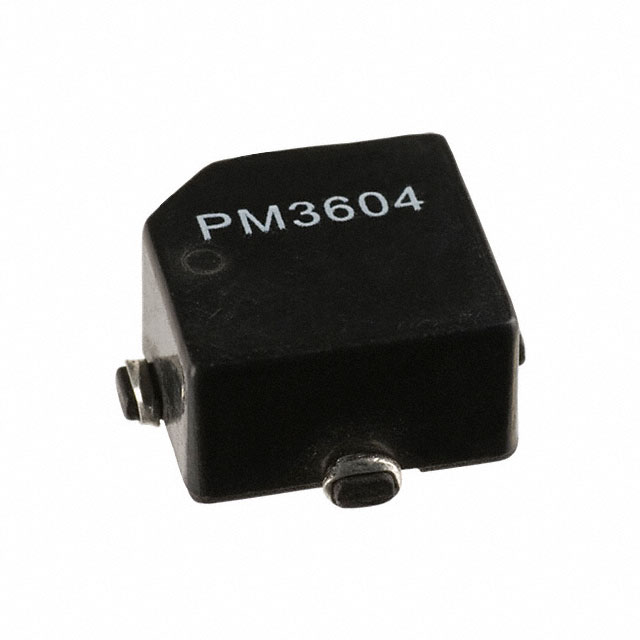

| Part number: | PM3604-20-RC |
| Description: | INDUCT ARRAY 2 COIL 20UH SMD |
| Manufacturer | J.W. Miller / Bourns |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "J.W. Miller / Bourns" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.452" W (13.97mm x 11.48mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |
| Height | 0.265" (6.73mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 80 µH |
| Inductance - Connected In Parallel | 20 µH |
| Current Rating - Parallel | 2.02 A |
| Current Rating - Series | 1.01 A |
| DC Resistance (DCR) - Parallel | 49mOhm Max |
| DC Resistance (DCR) - Series | 200mOhm Max |
|
