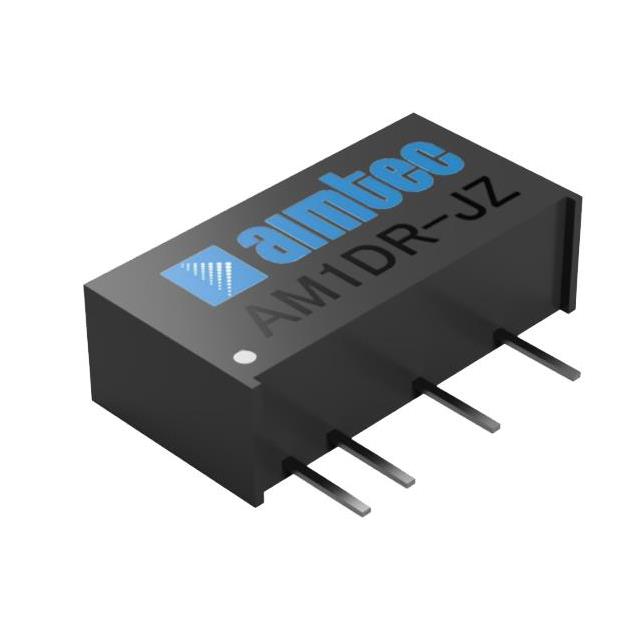

| Part number: | AM1DR-0515SJZ |
| Description: | DC DC CONVERTER 15V 1W |
| Manufacturer | Aimtec |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Aimtec" |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.25V |
| Approval Agency | cURus |
| Efficiency | 73% |
| Current - Output (Max) | 67mA |
| Voltage - Input (Min) | 4.75V |
| Voltage - Output 1 | 15V |
| Power (Watts) | 1 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.5 kV |
|
