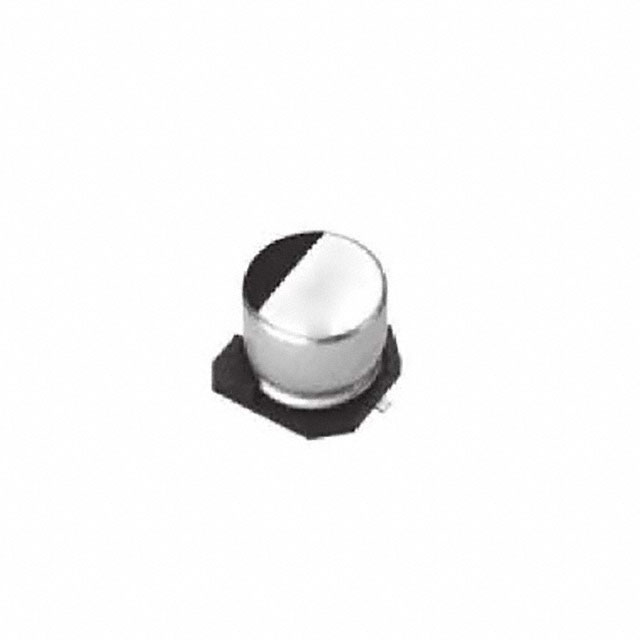

| Part number: | VZH470M1ETR-0606S |
| Description: | CAP ALUM 47UF 20% 25V SMD |
| Manufacturer | SURGE |
| Encapsulation | Cut Tape (CT) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "SURGE" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Capacitance | 47 µF |
| Voltage - Rated | 25 V |
| Impedance | 440 mOhms |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
|
