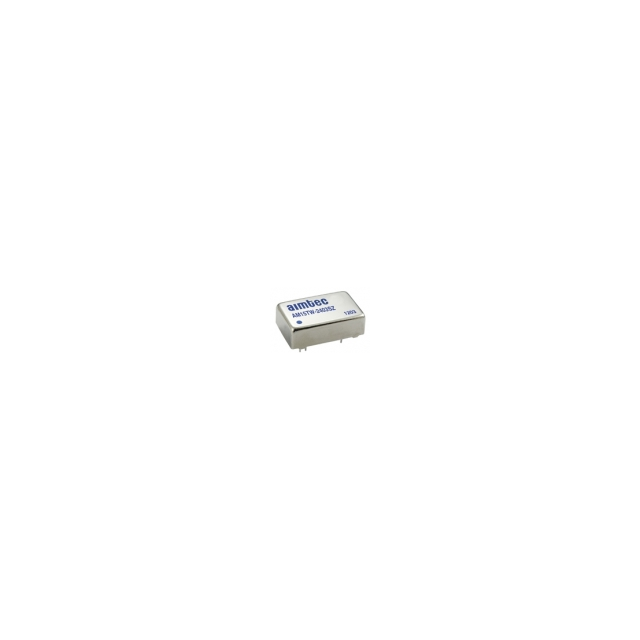

| Part number: | AM15TW-2415DZ |
| Description: | DC DC CONVERTER +/-15V 15W |
| Manufacturer | Aimtec |
| Encapsulation | Tube |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Aimtec" |
| Features | Remote On/Off |
| Package / Case | 24-DIP Module |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Approval Agency | CE |
| Efficiency | 90% |
| Current - Output (Max) | 500mA, 500mA |
| Voltage - Input (Min) | 9V |
| Voltage - Output 1 | -15 ~ 15V |
| Voltage - Output 2 | -15V |
| Power (Watts) | 15 W |
| Number of Outputs | 2 |
| Voltage - Isolation | 1.6 kV |
|
