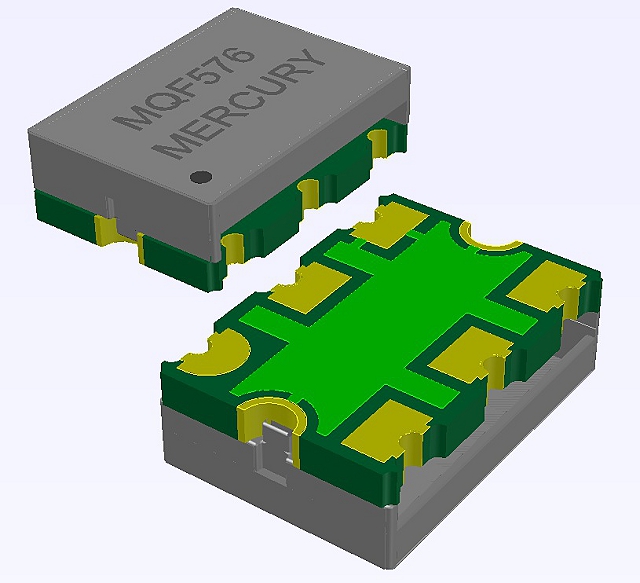

| Part number: | MQF576D33-155.520-1.0/-40+85 |
| Description: | XTAL OSC TCXO 155.5200MHZ LVDS |
| Manufacturer | Mercury United Electronics |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mercury United Electronics" |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Function | Enable/Disable |
| Type | TCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±1ppm |
| Voltage - Supply | 3.3V |
| Current - Supply (Max) | 32mA |
| Current - Supply (Disable) (Max) | 18mA (Typ) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Frequency | 155.52 MHz |
| Base Resonator | Crystal |
|
