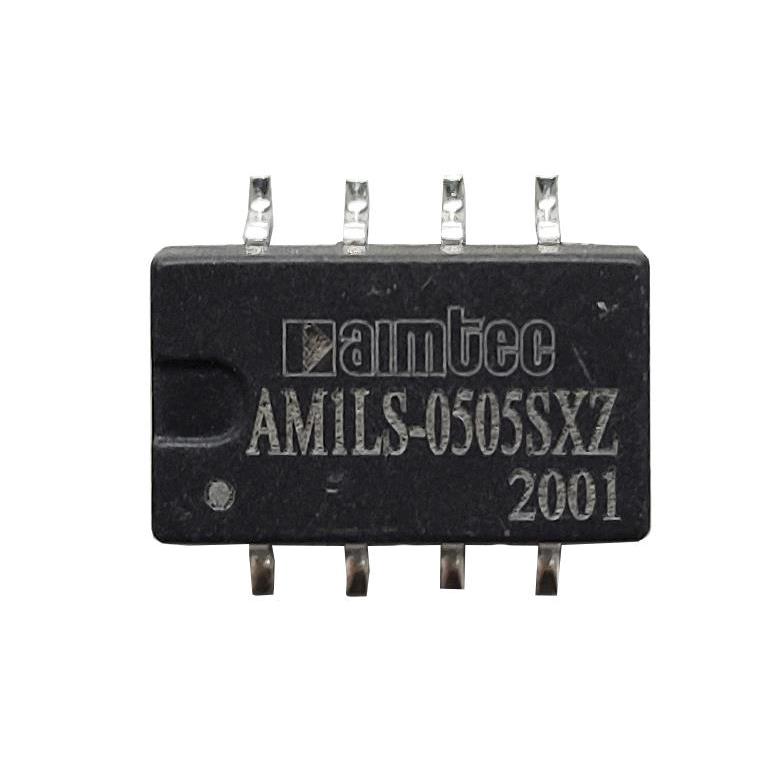

| Part number: | AM1LS-0505SXZ |
| Description: | DC DC CONVERTER 5V 1W |
| Manufacturer | Aimtec |
| Encapsulation | Tube |
| Quantity | 38 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Aimtec" |
| Package / Case | SMD |
| Size / Dimension | 0.50" L x 0.30" W x 0.25" H (12.7mm x 7.5mm x 6.3mm) |
| Mounting Type | Surface Mount |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 100°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Efficiency | 82% |
| Current - Output (Max) | 200mA |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 5V |
| Power (Watts) | 1 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.5 kV |
|
