| Part number: | XPC01GTC |

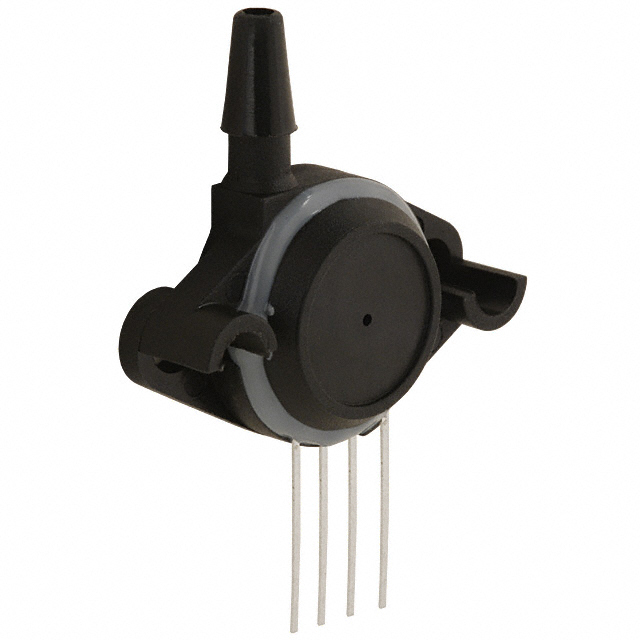

| Description: | SENSOR 1PSIG 0.19" .018V |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Encapsulation | Tube |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Honeywell Sensing and Productivity Solutions" |
| Features | Temperature Compensated |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 18 mV (12V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19" (4.83mm) Tube |
| Applications | Board Mount |
| Port Style | Barbed |
| Maximum Pressure | 3PSI (20.68kPa) |
|
