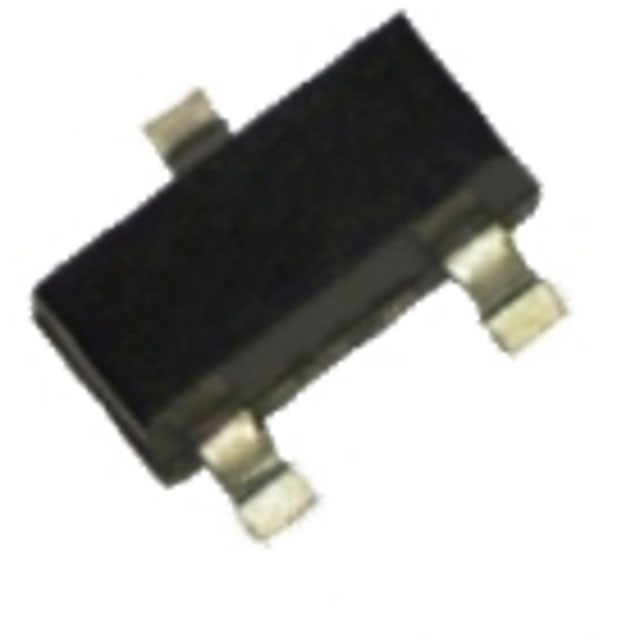

| Part number: | RM3415 |
| Description: | MOSFET P-CHANNEL 20V 4A SOT23 |
| Manufacturer | Rectron USA |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rectron USA" |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 4A, 4.5V |
| Power Dissipation (Max) | 1.4W (Ta) |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 950 pF @ 10 V |
|
