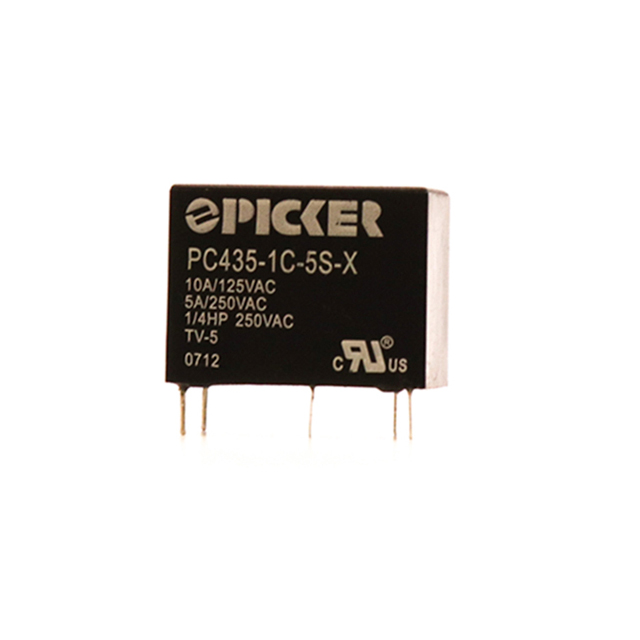

| Part number: | PC435-1C-5S-X |
| Description: | RELAY GEN PURPOSE SPDT 10A 5V |
| Manufacturer | Picker Components |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Picker Components" |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | CUL, UL |
| Relay Type | General Purpose |
| Coil Current | 89.3 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Must Release Voltage | 0.25 VDC |
| Must Operate Voltage | 3.75 VDC |
| Operate Time | 8 ms |
| Release Time | 5 ms |
| Coil Resistance | 56 Ohms |
| Coil Insulation | Class B |
| Load - Max Switching | 2770VA, 300W |
|
