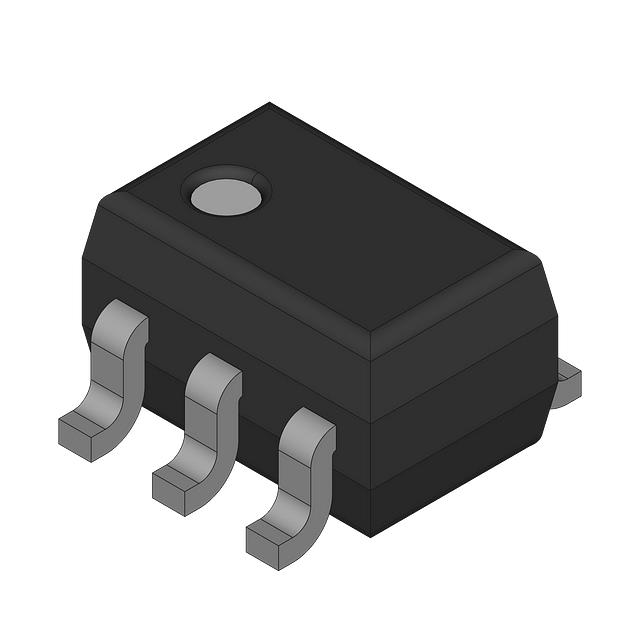

| Part number: | NC7S86P5 |
| Description: | IC GATE XOR 1CH 2-INP SC70-5 |
| Manufacturer | Fairchild Semiconductor |
| Encapsulation | Bulk |
| Quantity | 1158 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Fairchild Semiconductor" |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Logic Type | XOR (Exclusive OR) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Number of Inputs | 2 |
| Supplier Device Package | SC-70-5 |
| Input Logic Level - High | 1.5V |
| Input Logic Level - Low | 0.5V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 1 µA |
|
