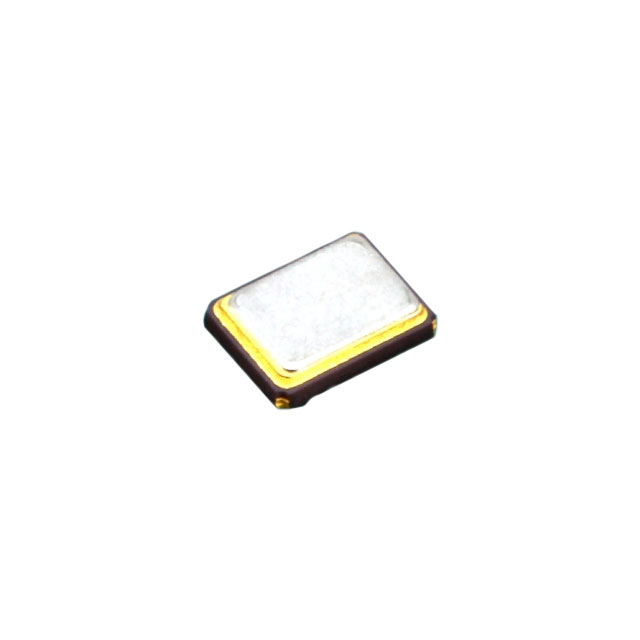

| Part number: | EB1620JA10-24.000M TR |
| Description: | CRYSTAL 24.0000MHZ 10PF SMD |
| Manufacturer | Ecliptek |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Ecliptek" |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 10pF |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±15ppm |
| Operating Mode | Fundamental |
| Ratings | AEC-Q200 |
| Height - Seated (Max) | 0.022" (0.55mm) |
| ESR (Equivalent Series Resistance) | 120 Ohms |
| Frequency | 24 MHz |
|
