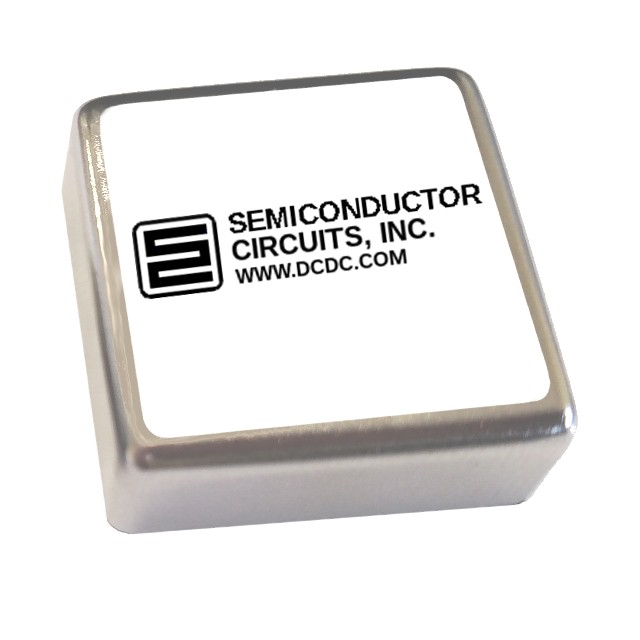

| Part number: | CP15B2310018N |
| Description: | DC DC CONVERTER +/-15V 15W |
| Manufacturer | Semiconductor Circuits, Inc. |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Semiconductor Circuits, Inc." |
| Package / Case | 6-DIP Module |
| Size / Dimension | 0.94" L x 0.94" W x 0.35" H (23.9mm x 23.9mm x 8.9mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | 86% |
| Current - Output (Max) | 500mA, 500mA |
| Voltage - Input (Min) | 9V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Control Features | Enable, Active Low |
| Power (Watts) | 15 W |
| Number of Outputs | 2 |
| Voltage - Isolation | 2.25 kV |
|
