| Part number: | EA2532LA18-16.000M TR |

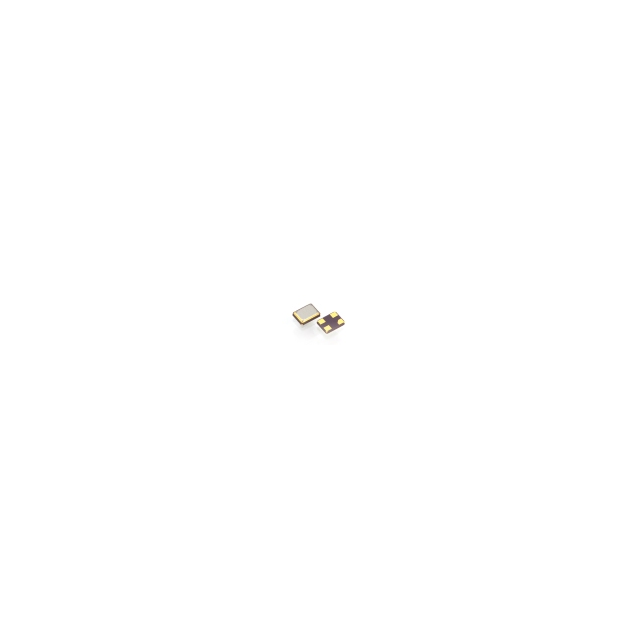

| Description: | CRYSTAL 16.0000MHZ 18PF SMD |
| Manufacturer | Ecliptek |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Ecliptek" |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 18pF |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±15ppm |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 0.031" (0.80mm) |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Frequency | 16 MHz |
|
