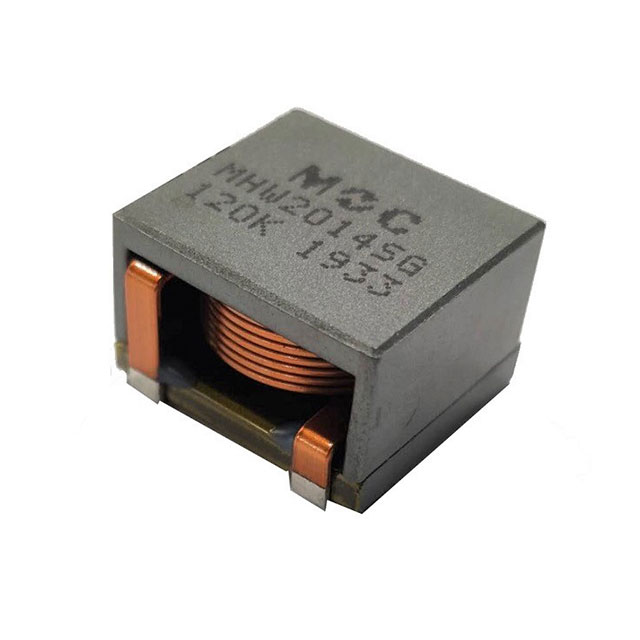

| Part number: | MHW2014SG120K |
| Description: | FIXED IND 12UH 12A 5 MOHM SMD |
| Manufacturer | Mentech Technology USA Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mentech Technology USA Inc." |
| Tolerance | ±10% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.878" L x 0.866" W (22.30mm x 22.00mm) |
| Mounting Type | Surface Mount |
| Type | Planar |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 5mOhm Max |
| Current - Saturation (Isat) | 22A |
| Height - Seated (Max) | 0.555" (14.10mm) |
| Inductance | 12 µH |
| Current Rating (Amps) | 12 A |
|
