| Part number: | RL1N1800F |

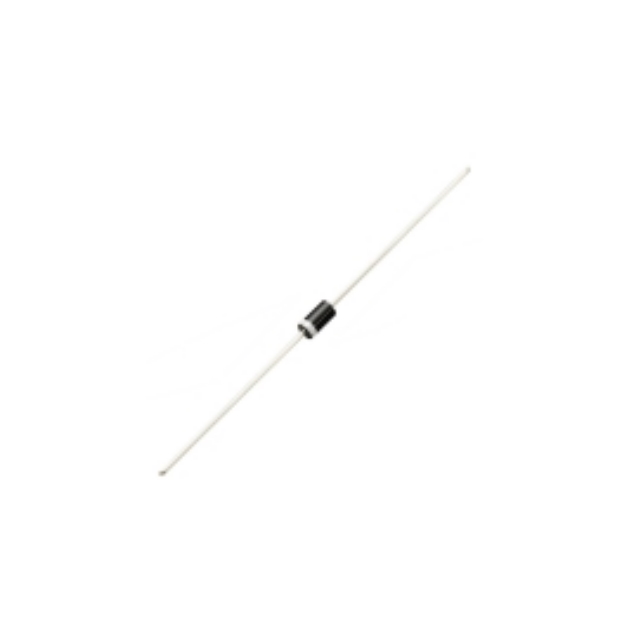

| Description: | DIODE GEN PURP 1.8KV 1A A-405 |
| Manufacturer | Rectron USA |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rectron USA" |
| Package / Case | Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 300 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | A-405 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 500 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 1800 V |
|
