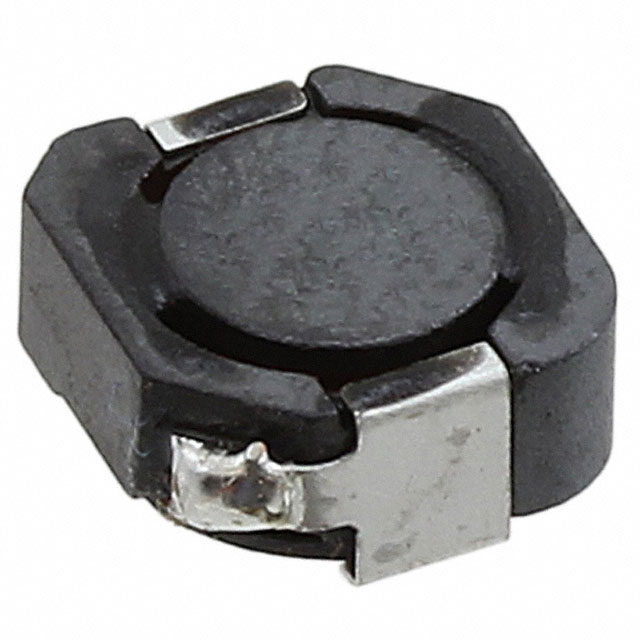

| Part number: | CDRH8D43RT125NP-150MC |
| Description: | FIXED IND 15UH 2.3A 61.8MOHM SMD |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.319" L x 0.315" W (8.10mm x 8.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 61.8mOhm Max |
| Current - Saturation (Isat) | 2.9A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Inductance | 15 µH |
| Current Rating (Amps) | 2.3 A |
|
