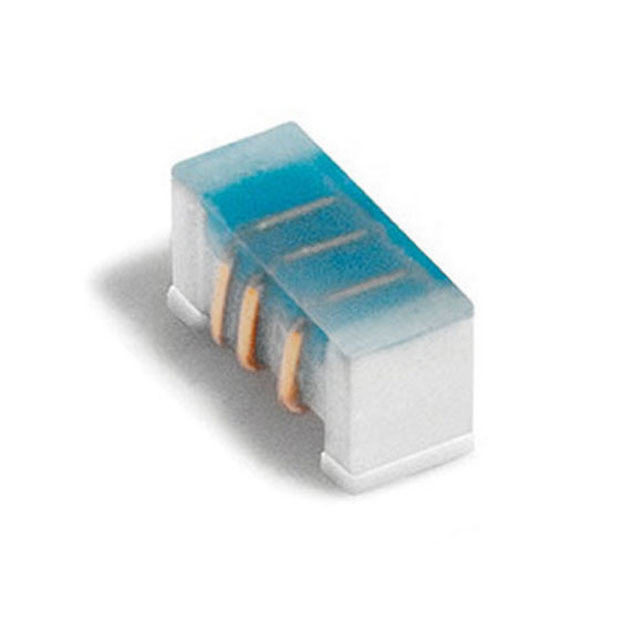

| Part number: | 0402DC-9N5XGRW |
| Description: | FIXED IND 9.5NH 1.4A 73MOHM SMD |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±2% |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.044" L x 0.026" W (1.11mm x 0.66mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 73mOhm Max |
| Q @ Freq | 73 @ 900MHz |
| Frequency - Self Resonant | 8GHz |
| Ratings | AEC-Q200 |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Inductance | 9.5 nH |
| Current Rating (Amps) | 1.4 A |
|
