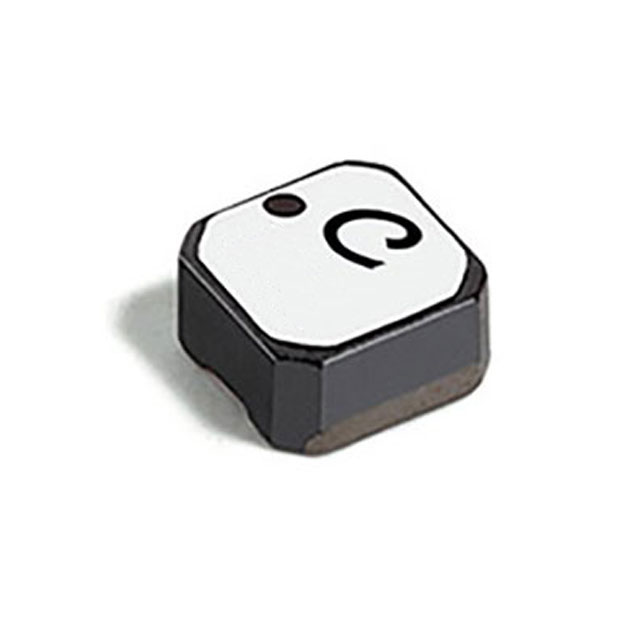

| Part number: | LPS3015-184MRC |
| Description: | FIXED IND 180UH 175MA 8.6OHM SMD |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.116" L x 0.116" W (2.95mm x 2.95mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 8.6Ohm Max |
| Frequency - Self Resonant | 7.5MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 170mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Inductance | 180 µH |
| Current Rating (Amps) | 175 mA |
|
