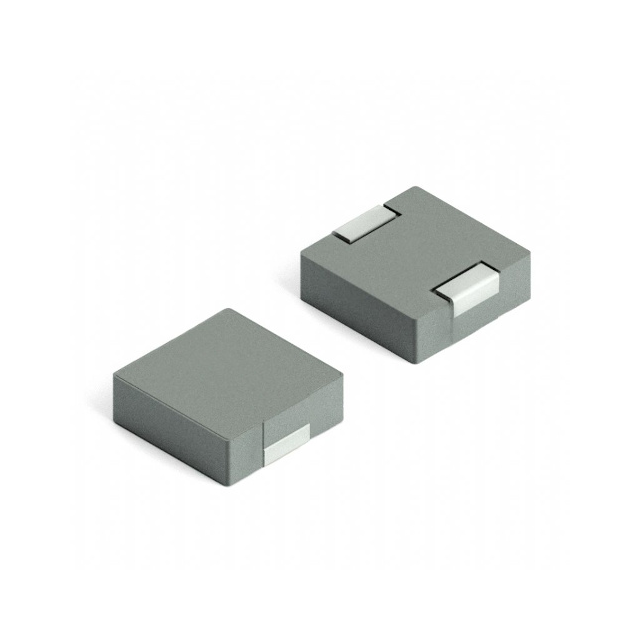

| Part number: | XFHCL6-220M |
| Description: | FIXED IND 22UH 2.5A 135 MOHM SMD |
| Manufacturer | XFMRS |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "XFMRS" |
| Tolerance | ±20% |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 135mOhm Max |
| Frequency - Self Resonant | 14MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 3.5A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Inductance | 22 µH |
| Current Rating (Amps) | 2.5 A |
|
