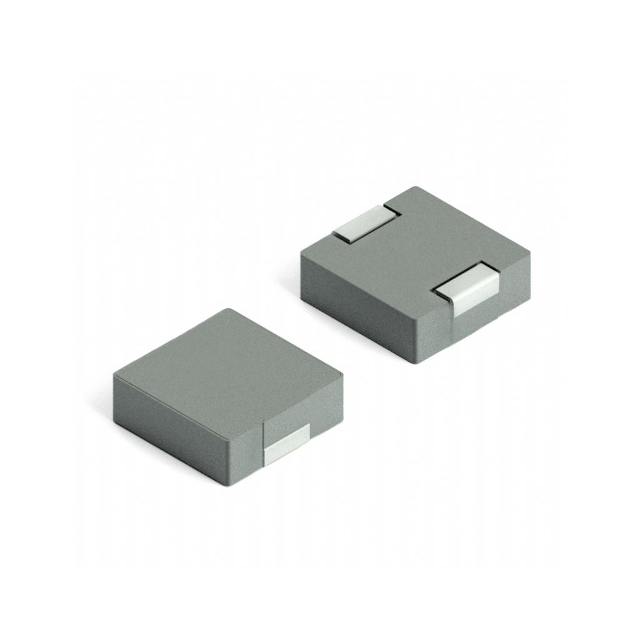

| Part number: | XFHCL4-R10M |
| Description: | FIXED IND 100NH 55A 0.6 MOHM SMD |
| Manufacturer | XFMRS |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "XFMRS" |
| Tolerance | ±20% |
| Size / Dimension | 0.531" L x 0.504" W (13.50mm x 12.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 0.6mOhm Max |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 80A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Inductance | 100 nH |
| Current Rating (Amps) | 55 A |
|
