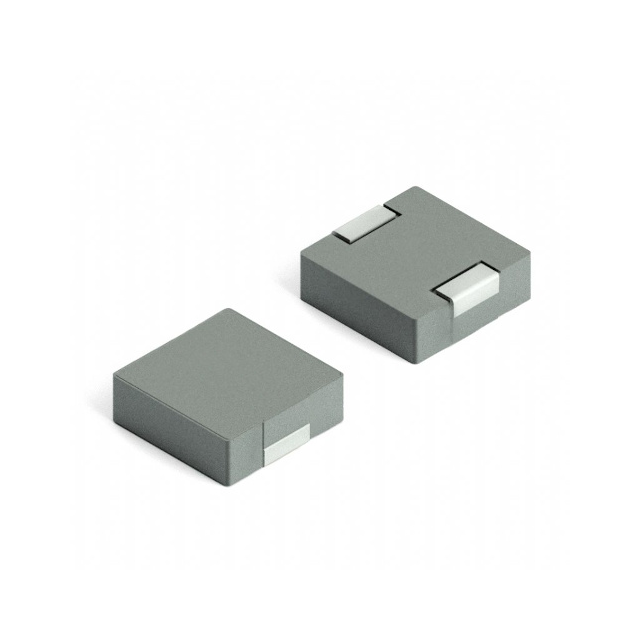

| Part number: | XFHCL11-100M |
| Description: | FIXED IND 10UH 6.8A 37 MOHM SMD |
| Manufacturer | XFMRS |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "XFMRS" |
| Tolerance | ±20% |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 37mOhm Max |
| Frequency - Self Resonant | 12MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 12A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 6.8 A |
|
