| Part number: | 046232112103800+ |

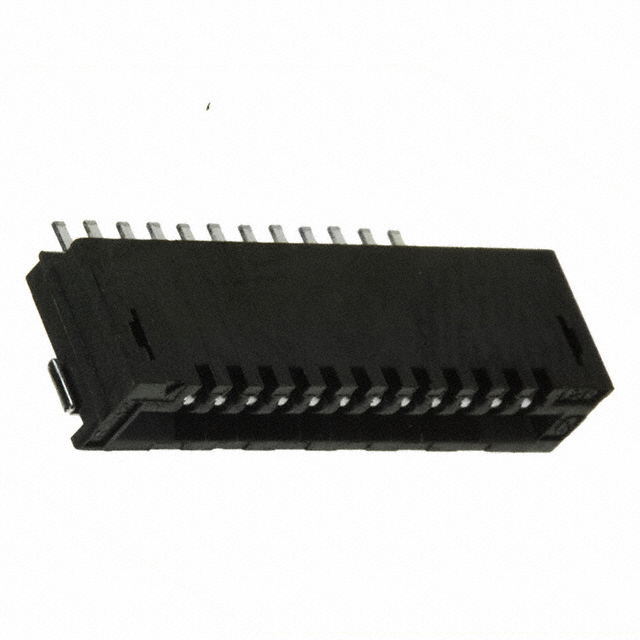

| Description: | CONN FFC FPC TOP 12POS 1MM R/A |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Features | Low Insertion Force (LIF), Solder Retention |
| Contact Finish | Tin Copper |
| Voltage Rating | 50V |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
| Pitch | 0.039" (1.00mm) |
| Operating Temperature | -20°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.118" (3.00mm) |
| Contact Material | Copper Alloy |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Plastic |
| Cable End Type | Straight |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Top |
|
